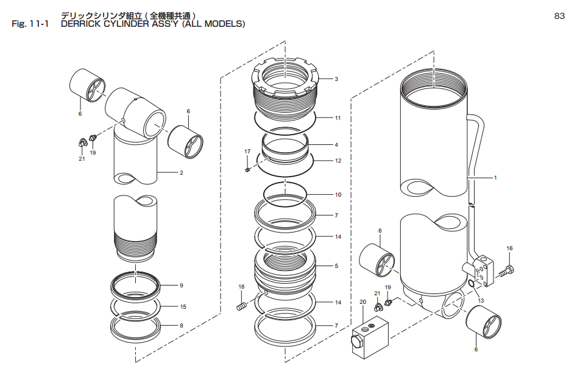

Деталировка UNIC DERRICK CYLINDER ASS'Y (ALL MODELS)
|
Номер на схеме
|
Артикул
|
Наименование
|
Кол.
|
Примечания
|
|
1-21
|
1set
|
|
||
|
1
|
090B 11010
|
Tube Ass'y(1)
|
1
|
|
|
2
|
090B 11021
|
Rod Ass'y(1)
|
1
|
|
|
3
|
090B 11031
|
Gland
|
1
|
|
|
4
|
0805 11040
|
Bushing-gland
|
1
|
|
|
5
|
090B 11040
|
Piston
|
1
|
|
|
6
|
090B 21120
|
Bushing
|
4
|
|
|
S7
|
8231 20135
|
Packing
|
2
|
|
|
S8
|
8420 95110
|
Packing
|
1
|
|
|
S9
|
7702 20022
|
Seal-dust
|
1
|
|
|
S10
|
7311 92095
|
Кольцо уплотнительное/ Ring-"O"
|
1
|
|
|
S11
|
7311 72135
|
Кольцо уплотнительное/ Ring-"O"
|
1
|
|
|
S12
|
7311 91125
|
Кольцо уплотнительное/ Ring-"O"
|
1
|
|
|
S13
|
7311 91016
|
Кольцо уплотнительное/ Ring-"O"
|
2
|
|
|
S14
|
8281 20135
|
Ring-back up
|
2
|
|
|
S15
|
8280 95110
|
Ring-back up
|
1
|
|
|
16
|
7117 08030
|
Болт/ Bolt
|
3
|
|
|
17
|
7049 06008
|
Screw-set
|
2
|
|
|
18
|
7049 10020
|
Screw-set
|
1
|
|
|
19
|
7243 32000
|
Nipple-grease
|
2
|
|
|
20
|
1
|
See Fig.11-1-1 CB-03ED-W3
|
||
|
21
|
7703 10027
|
Cap-nipple
|
2
|
|
|
S
|
1set
|
|
